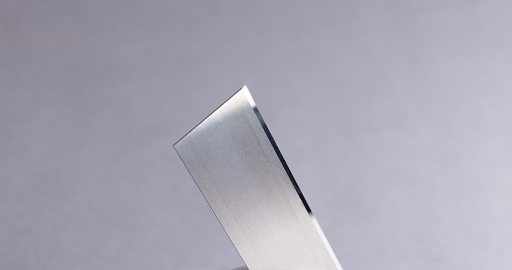

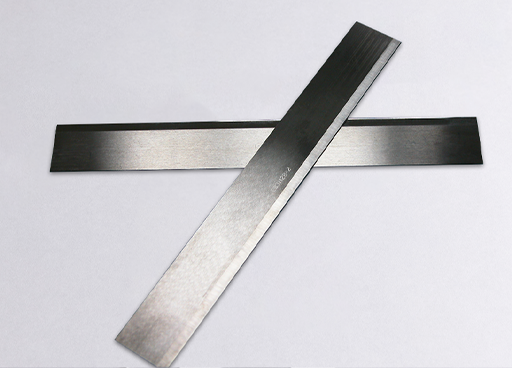

Green sheet cutter
These cutters use green sheets and are employed in the manufacturing process for laminated ceramic chip condensers.
Our company further improves their durability by using our original development of the ultra-fine particle cemented carbide MS series.
| Materials | Ultra-fine particle cemented carbide |
|---|---|
| Standard drawings |  |
| Measurement standards | T=0.25～0.4mm |
| H=22.4mm | |
| L=30～250mm | |
| θ=8°～40° |

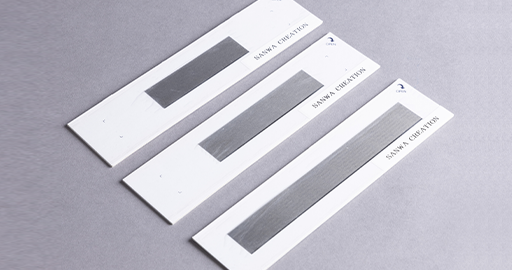

We recommend the MS series which our company developed for use in green sheets.
In particular, it has a finer particle composition when compared to that of other companies' materials, making it superior in reducing micro chipping.
| Materials | Particle size | Hardness | Transverse rupture strength | Note |
| um | HRA | kg/mm2 | ||
| Other companies' products | 1.0 | 91.0 | 3.3 | Other companies' products |
| MS2 | 0.6 | 91.5 | 3.5 | This is the green sheet use / standard material |
| MS4 | 0.5 | 92.5 | 3.6 | Suitable for high abrasion resistance |
MICROY blade / standard specification
1. Double step blade
2. Single step blade
